Inner Sorting

Concepts

  • Record, Key, Sort key, Sequence.

  • Stable/Unstable sorting.

    relative order of the Records with the same key are maintained in stable sorting.

  • Space Cost: Additional space used.
  • Time Cost: Best ~ Average ~ Worst

Simple Sorting Algorithms

Insert sort

// naive
void insertsort(int arr[], int n){
    for(int i=1; i<n; i++){
        for(int j=i; j>0; j--){
            if(arr[j]<arr[j-1])
                swap(arr[j], arr[j-1]);
            else break;
        }
    }
}

// instead of swapping each time, just move back and insert once (need an extra tmp).
void insertsort2(int arr[], int n){
    for(int i=1; i<n; i++){
        int tmp = arr[i];
        int j = i - 1;
        while(j>=0 && tmp<arr[j]) {
            arr[j+1] = arr[j];
            j--;
        }
        arr[j+1] = tmp;
    }
}

// use binary search to accelerate insert
// compare: O(nlogn), move: O(n^2)
void insertsort3(int arr[], int n){
    for(int i=1; i<N; i++){
        int tmp = arr[i];
        int left = 0, right = i-1;
        while(left<=right){
            int mid = (left+right)/2;
            if(tmp < arr[mid]) right = mid - 1;
            else left = mid + 1;
        }
        // left is the first element larger than tmp
        for(int j=i-1; j>=left; j--)
            arr[j+1] = arr[j];
        arr[left] = tmp;
    }
}

Stable.

Time: \(O(n) \sim O(n^2) \sim O(n^2)\)

Space: \(O(1)\)

Bubble sort

// bubble smallest to front
void bubble(int arr[], int n){
    // each routine make sure arr[i-1] is the smallest.
    for(int i=1; i<n; i++)
        for(int j=n-1; j>=i; j--)
            if(arr[j] < arr[j-1])
                swap(arr[j], arr[j-1]);
}

// if no record is swapped in one routine, we can break earlier.
void bubble2(int arr[], int n){
    bool flag;
    for(int i=1; i<n; i++){
        flag = true;
        for(int j=n-1; j>=i; j--)
            if(arr[j] < arr[j-1]){
                swap(arr[j], arr[j-1]);
                flag = false;
            }
        if(flag) return;
    }
}

Stable.

TIme1: \(O(n^2) \sim O(n^2) \sim O(n^2)\)

Time2: \(O(n) \sim O(n^2) \sim O(n^2)\)

Space: \(O(1)\)

Selection sort

void selectsort(int arr[], int n){
    for(int i=0; i<n-1; i++){
        int idx = i; // smallest element's index in [i:]
        for(int j=i+1; j<n; j++)
            if(arr[j]<arr[idx])
                idx = j;
        swap(arr[i], arr[idx]);
    }
}

Unstable. (Swap may change the order of records with the same key.)

​ 交换过程会破坏原来的顺序。(25,25',16,25'') -> (16,25',25,25'')

Space: \(O(1)\)

Time: \(O(n^2) \sim O(n^2) \sim O(n^2)\) (stably)

Improvement is the Heap sort. Instead of using O(n) to find the smallest element, we can put the records in a heap and only use O(logn).

Shell sort (缩小增量排序)

Based on Insert sort's good property when the sequence is short and almostly ordered.

void shellsort(int arr[], int n){
    for(int delta=n/2; delta>0; delta/=2)
        for(int j=0; j<delta; j++)
            insertsort_delta(&arr[j], n-j, delta);
}

void insertsort_delta(int arr[], int n, int delta){
    for(int i=delta; i<n; i+=delta){
        for(int j=i; j>=delta; j-=delta){
            if(arr[j] < arr[j-delta])
                swap(arr[j], arr[j-delta]);
            else break;
        }
    }
}

Unstable.

Different Delta sequence (here we use {n/2, n/4, ..., 1}) has different complexity.

Hibbard sequence \(\{2^k-1, .., 3, 1\}\) 's Time complexity is \(O(n^{\frac 3 2 })\)

Space: \(O(1)\)

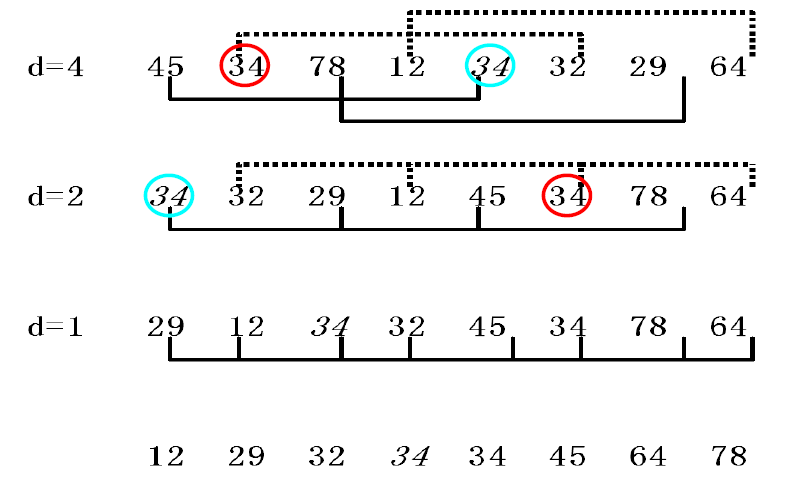

1546675194838

​ 交换次数计算：(1+1+1)+(1+1)+(4) = 9

Divide-and-conquer

quick sort (by Hoare)

Select an axis recursively and move smaller records left & larger records right.

void quicksort(int arr[], int left, int right){
    if(left < right){
        int pivot = partition(arr, left, right);
        quicksort(arr, left, pivot-1);
        quicksort(arr, pivot+1, right);
    }
}

int partition(int arr[], int left, int right){
    int i=left, j=right;
    int tmp = arr[left]; // pivot is selected as the left.
    while(i!=j){
        while((arr[j]>tmp)&&(i<j)) j--; // right to left
        if(i<j) arr[i++] = arr[j];  // swap
        while((arr[i]<=tmp)&&(i<j)) i++; // left to right
        if(i<j) arr[j--]=arr[i];  // swap
    }
    arr[i] = tmp;
    return i;
}

// simplified, sort a[l:r+1]
void quicksort(int a[], int l, int r) {
    if (l < r) {
        int i = l, j = r, x = a[l];
        while (i < j) {
            while (i < j && a[j] >= x) j--;
            if (i < j) a[i++] = a[j];
            while (i < j && a[i] <= x) i++;
            if (i < j) a[j--] = a[i];
        }
        arr[i] = x;
        quicksort(a, l, i - 1);
        quicksort(a, i + 1, r);
    }
}

Unstable.

Space: \(O(1)\)

Time: \(O(nlogn) \sim O(nlogn) \sim O(n^2)\)

When pivot is selected such that it always in nearly middle, the height of corresponding BST is smallest (logn).

When the sequence is already ordered, it reaches the worst Time complexity of n^2.

Analysis of average time complexity: (Similar to that of Random BST)

\[ \displaylines{ T(n) = T(i) + T(n-i-1) + cn\\ T(n) = \frac 2 n \sum_{i=0}^{n-1} T(i) + cn \\ nT(n) - (n-1)T(n-1) = 2T(n-1) + cn \\ \frac {T(n)} {n+1} = \frac {T(n-1)} {n} + \frac c n \\ \frac {T(n)} {n+1} \sim O(logn) \\ T(n) \sim O(nlogn) } \]

  • Variant: Find the first k smallest elements, or Find the k-th smallest element.

    They are the same question, and quicksort variant can give the best Average Time Complexity: \(O( n )\)

    (并不要求找到的前k个最小元素有序，只保证找到了第k小的元素，以及比它小的k-1个元素。从而可以避免k出现在复杂度公式中，严格的达到O(n))

    std::nth_element(begin, kth, end) implements this.

    void quicksort_k(int arr[], int l, int r, int k){
    if(l<r){
        int i=l, j=r, x=arr[l];
      while(i<j){
          while(i<j && arr[j]>=x) j--;
            if(i<j) arr[i++] = arr[j];
            while(i<j && arr[i]<=x) i++;
            if(i<j) arr[j--] = arr[i];
        }
        arr[i]=x;
        int tmp = i-l+1; // num of the smaller part of elements
        if(k == tmp) return;
        else if(k < tmp) quicksort_k(arr, l, i-1, k);
        else quicksort_k(arr, i+1, r, k-tmp);
    }
}

    Other methods to solve this question:

    （这些方法都是找到有序的前k个最小元素，所以复杂度都含有k）

    • Naïve quicksort: \(O(n log n)\)
    • Naïve Heap: \(O(n+klogn)\)

    • Small Heap: \(O(nlogk)\)

      Only keep a heap of capacity of k, and compare the others.

      std::partial_sort(arr, arr+k, arr+N) implements this.

      priority_queue<int> heap_k(int arr[], int n, int k){
    priority_queue<int> q; // maxheap
    for(int i=0; i<k; i++) q.push(arr[k]); // init
    for(int i=k; i<n; i++){
        if(arr[i] < q.top()){ // smaller than max
            q.pop();
            q.push(arr[i]);
        }
    }
    return q;
}

merge sort

quick sort focus on how to divide, merge sort focus on how to merge.

void mergesort(int arr[], int tmp[], int left, int right){
    if(left < right){
        int mid = (left+right)/2;
        mergesort(arr, tmp, left, mid);
        mergesort(arr, tmp, mid+1, right);
        merge(arr, tmp, left, right, mid);
    }
}

void merge(int arr[], int tmp[], int left, int right, int mid){
    for(int i=left; i<=right; i++) tmp[i] = arr[i];
    int i=left, j=mid+1;
    int idx = left;
    while(i<=mid && j<=right){
        if(tmp[i]<=tmp[j]) arr[idx++] = tmp[i++];
        else arr[idx++] = tmp[j++];
    }
    while(i<=mid) arr[idx++] = tmp[i++];
    while(j<=right) arr[idx++] = tmp[j++];
}

// simplified, sort [l, r]
int a[maxn], b[maxn];
void mergesort(int* a, int* b, int l, int r){
    if (l == r) return;
    int m = (l + r) / 2;
    mergesort(a, b, l, m);
    mergesort(a, b, m + 1, r);
    int i = l, j = m + 1; k = l;
    while (i <= m && j <= r){
        if (a[i] <= a[j]) b[k++] = a[i++];
        else b[k++] = a[j++];
    }
    while (i <= m) b[k++] = a[i++];
    while (j <= r) b[k++] = a[j++];
    for (int i = l; i <= r; i++) a[i] = b[i];
}

Stable.

Time: \(O(nlogn)\) (very stable)

Space: \(O(n)\) (the largest)

  • Variants of merge sort
# bottom-up merge sort (no recursion)
MergeSort(array, count)
    power_of_two = FloorPowerOfTwo(count)
    scale = count/power_of_two // 1.0 <= scale < 2.0

    for (length = 16; length < power_of_two; length = length * 2)
        for (merge = 0; merge < power_of_two; merge = merge + length * 2)
            start = merge * scale
            mid = (merge + length) * scale
            end = (merge + length * 2) * scale

            Merge(array, MakeRange(start, mid), MakeRange(mid, end))

Heap sort

Advanced version of Selection sort.

void heapsort(int arr[], int n){
    priority_queue<int> que(arr, arr+n);
    for(int i=0; i<n; i++) arr[i] = que.top(), que.pop(); // greater to less
}

Unstable.

Time: \(O(nlogn)\) (stably)

Space: \(O(1 )\)

Bin sort

需要对排序序列进行一定的假设限制。

不通过比较&交换，而通过收集&分配排序。

Bucket sort (Counting sort)

// assume arr[]'s range in [0, m)
void bucketsort(int arr[], int n, int m){
    int* tmp = new int[n]; // copy of arr
    int* cnt = new int[m]; // m buckets
    int i;
    for(i=0; i<n; i++) tmp[i] = arr[i];
    for(i=0; i<m; i++) cnt[i] = 0;
    // fill each bucket
    for(i=0; i<n; i++) cnt[arr[i]]++;
    // calculate position (cumulative sum)
    for(i=1; i<m; i++) cnt[i] += cnt[i-1];
    // collect in reverse order to keep stability.
    for(i=n-1; i>=0; i--) arr[--cnt[tmp[i]]] = tmp[i];
}

Stable. (if collecting reversely)

Time: \(O(m+n)\)

Space: \(O(m+n)\)

Suitable when \(m\) is very small compared to \(n\).

Bucket sort is in fact a generalization of counting sort, and what we wrote is in fact Counting sort.

By definition:

The particular distinction for bucket sort is that it uses a hash function to partition the keys of the input array, so that multiple keys may hash to the same bucket.

桶排序使用更加复杂的桶。每个桶划分一个范围，每个桶内部可能需要调用其他排序算法。最后，收集所有桶。计数排序的桶十分简单。基数排序使用多次计数排序。

Radix sort

Improved version of Bucket Sort when m is very large.

Divide-and-Conquer.

  • MSD: most significant digit first

    Human use this more. (456>123)

  • LSD: least significant digit first

    Computer uses this more often. (456>123)

Implementation:

  • Array-based
// assume there are *d* digits in key, each digit in [0, r).
// for integers, r=10, d=max([len(str(i)) for i in arr])
void radixsort(int arr[], int n, int d, int r){
    int* tmp = new int[n];
    int* cnt = new int[r];
    int i,j,k;
    int radix = 1;
    // LSD, call Bucket sort d times.
    for(i=1; i<=d; i++){
        for(j=0; j<r; j++) cnt[j] = 0;
        for(j=0; j<n; j++){
            k = (arr[j]/radix)%r;
            cnt[k]++;
        }
        for(j=1; j<r; j++) cnt[j] += cnt[j-1];
        for(j=n-1; j>=0; j--){
            k = (arr[j]/radix)%r;
            tmp[--cnt[k]] = arr[j];
        }
        // copy back to arr
        for(j=0; j<n; j++) arr[j] = tmp[j];
        radix *= r;
    }
}

Stable.

TIme: \(O(d \cdot (r+n)) \sim O(d \cdot n)\)

​ but since \(d \ge log_rn\) , \(O(d\cdot n) \sim O(nlogn)\).

Space: \(O(r+n)\)

  • LinkedList-based

    Avoid copying back and forth between tmp and arr.

struct node{
    int key;
    int next;
}
struct que{
    int head;
    int tail;
}

void radixsort(int arr[], int n, int d, int r){
    int i;
    int first = 0;
    que *q = new que[r];
    for(i = 0; i<n-1; i++) arr[i].next = i+1;
    arr[n-1].next = -1;
    for(i=0; i<d; i++){
        distribute(arr, first, i, r, q);
        collect(arr, first, i, r, q)
    }
    delete [] q;
}

void distrubute(int arr[], int first, int i, int r, que* q){
    for(j=0; j<r; j++) q[j].head = -1;
    while(first != -1){
        int k = arr[first].key;
        for(int a=0; a<i; a++) k /= r;
        k %= r;
        if(q[k].head == -1) q[k].head = first;
        else arr[q[k].tail].next = first;
        q[k].tail = first;
        first = arr[first].next;
    }
}

void collect(int arr[], int& first, int i, int r, que* q){
    int last, k=0;
    while(q[k].head == -1) k++;
    first = q[k].head;
    last = q[k].tail;
    while(k<r-1) {
        k++;
        while(k<r-1 && q[k].head==-1) k++;
        if(q[k].head != -1){
            arr[last].next = q[k].head;
            last = q[k].tail;
        }
    }
    arr[last].next = -1;
}
  • String Radix sort
vector<string> ans;
void radixsort(vector<string>& s,int k=0)
{
    if(s.empty()) return;
    vector<string> bucket[26];
    for(int i=0;i<s.size();++i)
    {
        if(s[i].length()==k)
        {
            ans.push_back(s[i]);
            continue;
        }
        int index=s[i][k]-'a';
        bucket[index].push_back(s[i]);
    }
    for(int i=0;i<26;++i) radixsort(bucket[i],k+1);
}

Time Complexity: \(O(\sum_i s_i)\)

Alphabetial String sort has the property that sorting from the first letter, no matter how long the string is, the latter buket sorting will not change the rank of the former bucket sorting.

Index sort

避免移动记录本身，而对索引/地址排序。

Where am i going? res[idx1[i]] = arr[i]

Where am i from? arr[idx2[i]] = res[i]

Choose either. We use idx2 in the following code:

template<class record>
void indexsort(record arr[], int idx[], int n){
    for(int i=0; i<n; i++) idx[i] = i;
    // simple insert sort kernel to sort only idx.
    for(int i=1; i<n; i++){
        for(int j=i; j>0; j--){
            if(arr[idx[j]] < arr[idx[j-1]])
                swap(idx[j], idx[j-1]);
            else break;
        }
    }
    adjust(arr, idx, n); // modify records
}

//time: O(n), space: **O(1)**
template<class record>
void adjust(record arr[], int idx[], int n){
    record tmp;
    for(int i=0; i<n; i++){
        tmp = arr[i];
        int j=i;
        while(idx[j] != i){
            arr[j] = arr[idx[j]];
            // swap(idx[j], j);
            int k = idx[j];
            idx[j] = j;
            j = k;
        }
        arr[j] = tmp;
        idx[j] = j;
    }
}

关键在于adjust仅使用O(1)额外空间。

Summary

排序算法的下界分析：判定树。

有n个记录，生成的判定树有n!个叶节点，树深为\(O(lg(n!)) \sim O(nlogn)\)。

最坏情况下比较次数为根到叶的最长距离，即树深。

最好情况下比较次数为根到叶的最短距离，即n-1。
