Single-/Multi- view 3D Reconstruction and Generation

We focus on the problem of 3D reconstruction / generation from single or multiple (but not too many) RGB (D)s.

The problem is usually ill-posed (ambiguous), and needs to guess / generate some content.

Object Level

Category:

  • Inference:

    • Single-view RGB (D)
    • Multiple-view RGB (D)
    • Train in addition:
    • 3D GT
      • Multiple-view RGB
      • semantic / instance segmentation (can be generated from pretrained Mask R-CNN)
      • camera pose

  • Output Representation:

    • Voxels
    • Point Cloud
    • Implicit Function (Signed Distance Function, Radiance Field)
    • Mesh

Trend:

  • Input: Multi-view --> Single view
  • Input: RGBD --> RGB
  • Train: w/ 3D GT --> w/o 3D GT
  • Train: w/ camera pose --> w/o camera pose
  • Output: Voxels --> Point Cloud / Implicit Function / Mesh

[ECCV 2016] 3D-R2N2: 3D Recurrent Reconstruction Neural Network

@inproceedings{Choy20163DR2N2AU,
  title={3D-R2N2: A Unified Approach for Single and Multi-view 3D Object Reconstruction},
  author={C. Choy and Danfei Xu and JunYoung Gwak and Kevin Chen and S. Savarese},
  booktitle={ECCV},
  year={2016}
}

paper | code

Problem
  • Input: RGB Image (Single or Multiple View), Instance Segmentation + 3D GT
  • Output: Voxels
Contributions
  • LSTM framework for single or multiple view 3d reconstruction.
  • Minimal supervision, no segmentation, no camera pose, no class label.

image-20210401215040718

[3DV 2017] Hierarchical Surface Prediction for 3D Object Reconstruction

paper

Problem
  • Input: Single-view RGB Image / Depth Image / Partial Volume + 3D GT
  • Output: Voxels

image-20210401215558646

[ICCVW 2017] 3D Object Reconstruction from a Single Depth View with Adversarial Learning

paper

[ICCV 2017] Octree Generating Networks: Efficient Convolutional Architectures for High-resolution 3D Outputs

paper | code

[NIPS 2017] MarrNet: 3D Shape Reconstruction via 2.5D Sketches

paper

image-20210401220252010

[CVPR 2017] A point set generation network for 3d object reconstruction from a single image.

paper

Problem
  • Input: Single RGB Image, Instance Segmentation, Camera Pose + 3D GT
  • Output: Point Cloud

[ECCV 2018] Pixel2Mesh: Generating 3D Mesh Models from Single RGB Images

paper | code

Problem
  • Input: Single RGB Image, Camera Intrinsics + 3D GT
  • Output: Mesh

image-20210401222806763

[ECCV 2018] Learning Category-Specific Mesh Reconstruction from Image Collections.

@inproceedings{Kanazawa2018LearningCM,
  title={Learning Category-Specific Mesh Reconstruction from Image Collections},
  author={A. Kanazawa and Shubham Tulsiani and Alexei A. Efros and Jitendra Malik},
  booktitle={ECCV},
  year={2018}
}

paper | code

Problem
  • Input: Single RGB Image. Instance Segmentation, Semantic Key-points
  • Output: Camera Pose, Mesh, Texture.
Contribution
  • Deformable Mesh Representation (need categorical mean shape as mesh template)
  • Only need Single-view RGB (w/o Multi-view or 3D GT)
  • Able to infer texture.

image-20210401212228981

[ECCV 2014] OpenDR: An approximate differentiable renderer.

paper

Inverse graphics: reverse-engineer the physical process that produced a real image.

Problem
  • body shape estimation from image and range data.
Contributions
  • We define a differentiable renderer (DR) as a process that (1) supplies pixels as a function of model parameters to simulate a physical imaging system and (2) supplies derivatives of the pixel values with respect to those parameters. To be practical, the DR also has to be fast; this means it must have hardware support. Consequently we work directly with OpenGL. Because we make it publicly available, we call our framework OpenDR (http://open-dr.org).
  • Our goal is not rendering, but inverse rendering

[CVPR 2018] Neural 3D mesh renderer.

paper

Problem
  • single-image unsupervised 3D mesh reconstruction
  • 2D-to-3D style transfer
Contributions
  • we propose an approximate gradient for rasterization that enables the integration of rendering into neural networks.

[ICCV 2019] Soft Rasterizer: A differentiable renderer for image-based 3d reasoning.

paper | code

Problem
  • 3D unsupervised single-view reconstruction
  • image-based shape fitting
Contributions
  • Unlike the state-of-the-art differentiable renderers [opendr, neural 3d mesh renderer], which only approximate the rendering gradient in the back propagation, we propose a truly differentiable rendering framework that is able to (1) directly render colorized mesh using differentiable functions and (2) back-propagate efficient supervision signals to mesh vertices and their attributes from various forms of image representations, including silhouette, shading and color images.
  • The key to our framework is a novel formulation that views rendering as an aggregation function that fuses the probabilistic contributions of all mesh triangles with respect to the rendered pixels.

image-20210413224908057

[NIPS 2019] Learning to predict 3d objects with an interpolation-based differentiable renderer

paper | code

Problem
  • Input: Mesh, Texture, Camera Pose
  • Output: rendered Image & gradient
Contribution
  • Key to our approach is to view foreground rasterization as a weighted interpolation of local properties and background rasterization as a distance-based aggregation of global geometry

image-20210402101531055

[NIPS 2019] DISN: Deep Implicit Surface Network for High-quality Single-view 3D Reconstruction

paper | code

Problem
  • Input: Single RGB Image + 3D GT
  • Output: Implicit Function

[ECCV 2020] Shape and viewpoint without keypoints.

paper | code

Problem
  • Input: Single RGB Image, Instance Segmentation, categorical mesh templates
  • Output: Camera Pose, Mesh, Texture
Contribution
  • keypoint-free, by using a canonical mesh template for each category, and estimate pose by fitting silhouette. (template based)

image-20210402103603482

image-20210402103514003

[ECCV 2020] Self-supervised single-view 3d reconstruction via semantic consistency

paper

Problem
  • Input: Single RGB Image, Part Segmentation
  • Output: Camera Pose, Mesh, Texture
Contribution
  • keypoint-free, by using self-supervised part segmentations (SCOPS) to infer a 3d semantic template. (semantic based)
  • Leverage the semantic part invariance property of object instances of a category as a deformable parts model
  • Learn a category-level 3D shape template from scratch via iterative learning

image-20210402102613777

[CVPR 2020] From Image Collections to Point Clouds with Self-supervised Shape and Pose Networks

@inproceedings{navaneet2020ssl3drecon,
 author = {Navaneet, K L and Mathew, Ansu and Kashyap, Shashank and Hung, Wei-Chih and Jampani, Varun and Babu, R Venkatesh},
 booktitle = {IEEE Conference on Computer Vision and Pattern Recognition (CVPR)},
 title = {From Image Collections to Point Clouds with Self-supervised Shape and Pose Networks},
 year = {2020}
}

paper | code

Problem
  • Input: Single RGB Image
  • Output: Camera Pose, Point Cloud

image-20210401221826288

[NIPS 2020] Convolutional Generation of Textured 3D Meshes

@article{Pavllo2020ConvolutionalGO,
  title={Convolutional Generation of Textured 3D Meshes},
  author={Dario Pavllo and Graham Spinks and T. Hofmann and Marie-Francine Moens and Aur{\'e}lien Lucchi},
  journal={ArXiv},
  year={2020},
  volume={abs/2006.07660}
}

paper | code

Problem
  • Input: Single-view RGB Image, class label / caption (for GAN text conditioning), Instance Segmentation, Camera Pose.
  • Output: Mesh, Texture
Contribution
  • Displacement Map for a smooth convolutional mesh representation
  • GAN for producing textured mesh.
  • Conditional Generation of mesh from text.

image-20210401213253243

image-20210401213317770

[Arxiv 2021] Learning Generative Models of Textured 3D Meshes from Real-World Images

@inproceedings{Pavllo2021LearningGM,
  title={Learning Generative Models of Textured 3D Meshes from Real-World Images},
  author={Dario Pavllo and J. Kohler and T. Hofmann and Aur{\'e}lien Lucchi},
  year={2021}
}

paper

Problem
  • Input: Single view RGB image, categorical mesh template.
  • Output: Camera Pose, Mesh, Texture
Contributions
  • keypoint-free, combines template-based and semantic-based approaches.
  • single GAN for all categories.

image-20210402101050945

image-20210402101126321

[Arxiv 2021] NeuTex: Neural Texture Mapping for Volumetric Neural Rendering

@article{Xiang2021NeuTexNT,
  title={NeuTex: Neural Texture Mapping for Volumetric Neural Rendering},
  author={Fanbo Xiang and Zexiang Xu and Milovs Havsan and Yannick Hold-Geoffroy and Kalyan Sunkavalli and Hao Su},
  journal={ArXiv},
  year={2021},
  volume={abs/2103.00762}
}

paper

Problem
  • Input: Multi-view RGB Images, Camera Pose, point cloud from COLMAP.
  • Output: Radiance Field, Texture.
Contribution
  • Disentangled NeRF (\(F_{\sigma}: \mathbf{x} \rightarrow \sigma, F_{\mathbf c}: (\mathbf{x}, \mathbf d) \rightarrow \mathbf c\))
  • regress coordinate (\(u,v\)) of a Texture map (\(F_{\mathbf c}(\mathbf{x}, \mathbf d) = F_{tex}(F_{uv}(x), \mathbf d)\))
  • Inverse Mapping \(F_{uv}^{-1}\): can refine the COLMAP point cloud.

image-20210402105216141

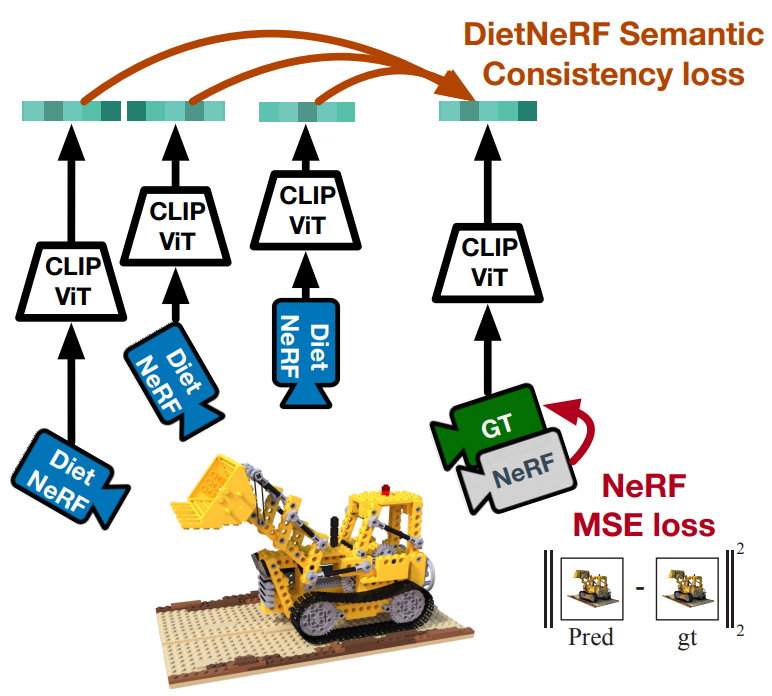

[Arxiv 2021] Putting NeRF on a Diet: Semantically Consistent Few-Shot View Synthesis

paper

Contributions
  • Scenes share high-level semantic properties across viewpoints, and pre-trained 2D visual encoders can extract these semantics. "An X is an X from any viewpoint."

image-20210402142103260

Remaining Problems:

  • Avoid using topologically fixed Mesh Template
    • BSP-Net: but it is a global model inborn, maybe hard to model complicated scenes.
    • Piecewise Bezier Surface ?
  • Extract mesh from implicit functions --> Marching Cubes
    • Faster Extraction.
    • How to extract mesh from NeRF? (view-dependent to independent)

Scene Level

[CVPR 2018] ScanComplete: Large-Scale Scene Completion and Semantic Segmentation for 3D Scans

@article{Dai2018ScanCompleteLS,
  title={ScanComplete: Large-Scale Scene Completion and Semantic Segmentation for 3D Scans},
  author={Angela Dai and Daniel Ritchie and Martin Bokeloh and Scott E. Reed and J{\"u}rgen Sturm and M. Nie{\ss}ner},
  journal={2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition},
  year={2018},
  pages={4578-4587}
}

paper

Problem
  • Input: Multi-view RGBD Images (Scan) --> TSDF + 3D GT
  • Output: Voxels, Semantics
Contributions
  • In fact Multi-view SSC.


[CVPR 2020] SynSin: End-to-end View Synthesis from a Single Image

paper | code

Problem
  • Input: Single-view RGB, Camera Pose + Multiple-view RGB
  • Output: Novel-view RGB
Contribution
  • differentiable point cloud render

image-20210402151112751

[CVPR 2020] SG-NN: Sparse Generative Neural Networks for Self-Supervised Scene Completion of RGB-D Scans

@article{Dai2020SGNNSG,
  title={SG-NN: Sparse Generative Neural Networks for Self-Supervised Scene Completion of RGB-D Scans},
  author={Angela Dai and Christian Diller and M. Nie{\ss}ner},
  journal={2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
  year={2020},
  pages={846-855}
}

paper

Problem
  • Input: Multi-view Depth Images (Scan) --> TSDF
  • Output: Voxels
Contributions
  • Self-supervised Scene Completion.


[TPAMI 2020] Semantic Scene Completion using Local Deep Implicit Functions on LiDAR Data

paper

Problem
  • Input: Single view LiDAR --> Point Cloud
  • Output: Implicit Function with semantics.

[Arxiv 2021] SPSG: Self-Supervised Photometric Scene Generation from RGB-D Scans

@article{Dai2020SPSGSP,
  title={SPSG: Self-Supervised Photometric Scene Generation from RGB-D Scans},
  author={Angela Dai and Yawar Siddiqui and Justus Thies and Julien P. C. Valentin and M. Nie{\ss}ner},
  journal={ArXiv},
  year={2020},
  volume={abs/2006.14660}
}

paper

Problem
  • Input: Multi-view RGBD Images (Scan) --> TSDF
  • Output: Voxels (with color, high resolution)
Contributions
  • Self-supervised Geometry and Color Completion
  • 2D view guided synthesis for RGB, by rendering TSDF to the original views. (a differentiable TSDF render)
  • GAN model.


image-20210402133455770

Remaining Problems:

  • Self-supervised SSC
    • Input: Single/Multi view RGB (+D ?), Output: still in voxels
    • How:
      • Novel View Synthesis
        • Single-view: unsupervised (pixel-NeRF)
        • Multiple-view: supervised (SynSin)
      • Use the novel views (and depths) to reconstruct voxel volumes.
      • Semantic Cues is crucial for success. How ?
  • Generative model
    • Single view SSC is highly ill-posed.
    • How to generate high resolution voxels / Mesh ?
    • GAN prefers 2D data, differentiable rendering ?
  • Mesh Representation
    • Low-resolution Voxels are unable for rendering purpose (e.g. RGB, light).
    • Hard. It's better to divide and conquer, by first detecting objects and layout.

[]

``

paper

Problem
  • Input:
  • Output:
Contributions
